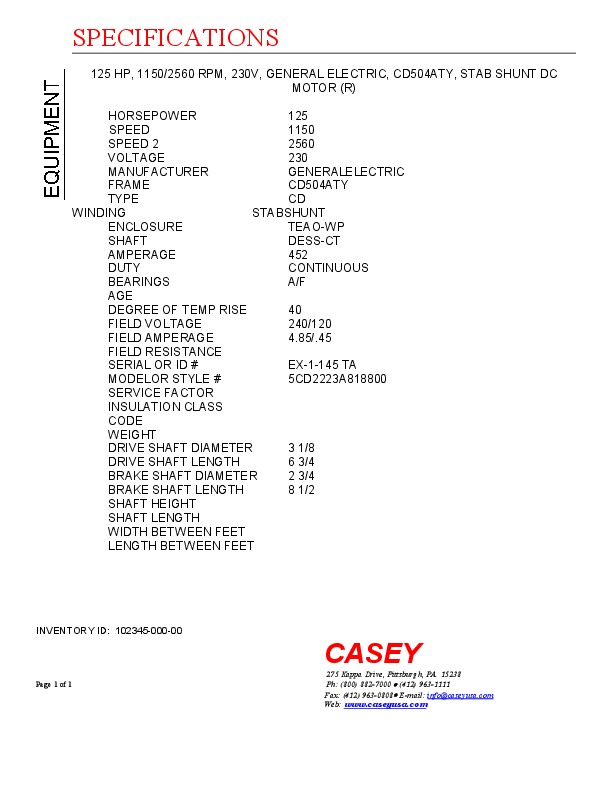

125 HP, 1150/2560 RPM, 230V, GENERAL ELECTRIC, CD504ATY, STAB SHUNT USED DC MOTOR (R)
| INVENTORY ID | 10234500000 |
| TITLE | 125 HP, 1150/2560 RPM, 230V, GENERAL ELECTRIC, CD504ATY, STAB SHUNT USED DC MOTOR (R) |
| HORSEPOWER | 125 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2560 RPM |
| VOLTAGE | 230 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 504ATY |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | TEAO-WP |
| SHAFT | DESS-CT |
| AMPERAGE | 452 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240/120 |
| FIELD AMPERAGE | 4.85/.45 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | EX-1-145 TA |
| MODEL NUMBER OR STYLE NUMBER | 5CD2223A818800 |
| DRIVE SHAFT DIMENSION | 3 1/8 |
| DRIVE SHAFT LENGTH | 6 3/4 |
| BRAKE SHAFT DIAMETER | 2 3/4 |
| BRAKE SHAFT LENGTH | 8 1/2 |
