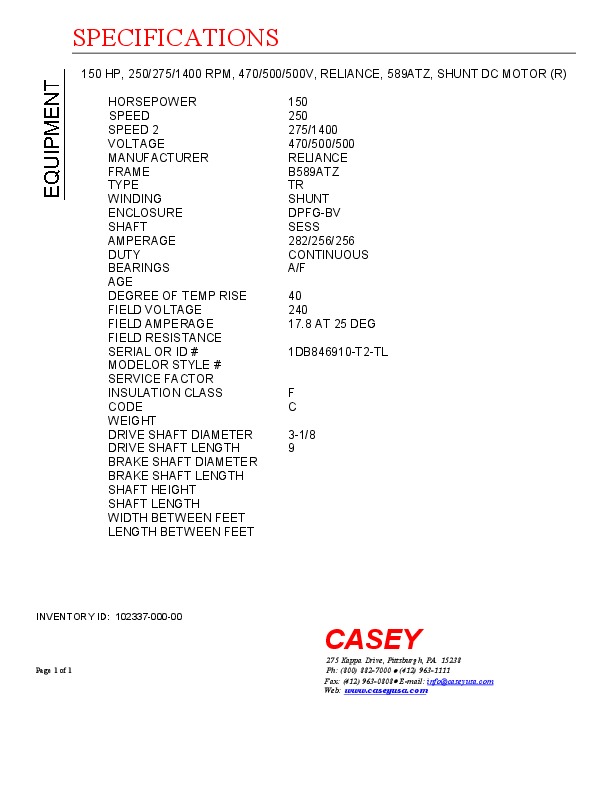

150 HP, 250/275/1400 RPM, 470/500/500V, RELIANCE, B589ATZ, SHUNT USED DC MOTOR (R)
| INVENTORY ID | 10233700000 |
| TITLE | 150 HP, 250/275/1400 RPM, 470/500/500V, RELIANCE, B589ATZ, SHUNT USED DC MOTOR (R) |
| HORSEPOWER | 150 HP |
| SPEED | 250 RPM |
| SPEED 2 | 275/1400 RPM |
| VOLTAGE | 470/500/500 VOLT |
| MANUFACTURER | RELIANCE |
| FRAME | 589ATZ |
| TYPE | TR |
| WINDING | SHUNT |
| ENCLOSURE | DPFG-BV |
| SHAFT | SESS |
| AMPERAGE | 282/256/256 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 17.8 AT 25 DEG |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 1DB846910-T2-TL |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 3-1/8 |
| DRIVE SHAFT LENGTH | 9 |
