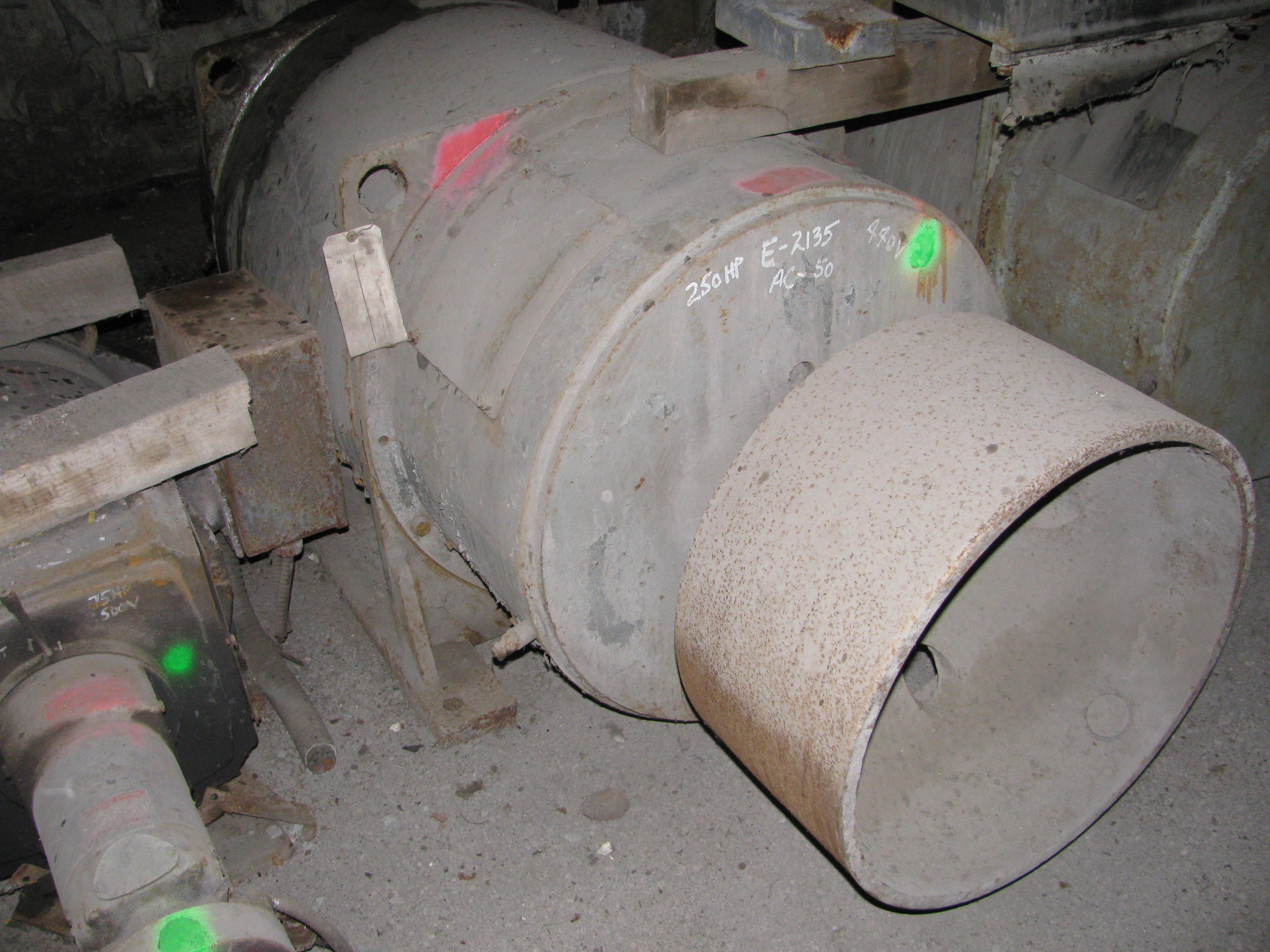

250 HP, 711 RPM, LOUIS ALLIS, 440V, 689 AC SLIP RING CRANE MOTOR
 "10223500000 250 HP, 711 RPM, LOUIS ALLIS, 440V, 689 AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10223500000 |
| TITLE | 250 HP, 711 RPM, LOUIS ALLIS, 440V, 689 AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 250 |
| SPEED | 711 |
| STATOR VOLTAGE 1 | 440 |
| MANUFACTURER | LOUISALLIS |
| TYPE | AC50 |
| FRAME | 689 |
| SHAFT HEIGHT | 16 1/2" |
| ROTOR AMPS | 402 |
| ROTOR VOLTS | 310 |
| SHAFT EXTENSION | DETS |
| ENCLOSURE | DPFG |
| STATOR AMPS | 402 |
| BEARINGS | A/F |
| SERIAL NUMBER OR ID NUMBER | 3288216001 |
| PHASE | 3 |
| DUTY (MINUTES) | CONTINUOUS |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 4,200 |
| DRIVE SHAFT DIAMETER | 4 1/4" |
| DRIVE SHAFT LENGTH | 7 1/4" |
| BRAKE SHAFT DIAMETER | 4 1/4" |
| BRAKE SHAFT LENGTH | 7 1/4" |
| OVERALL LENGTH | 72 1/2" |
| FRONT BOLT HOLE TO SHAFT | 11" CTR OF FRT BOLT HOLE TO BEGINNING OF SHAFT |
| WIDTH BETWEEN FEET | 31 1/2" |
| LENGTH BETWEEN FEET | 35 1/2" |
