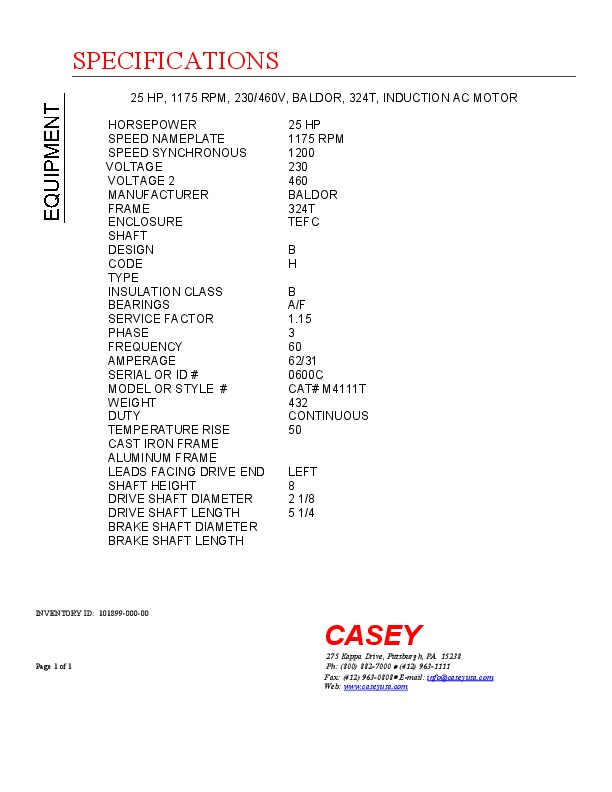

25 HP, 1175 RPM, 230/460V, BALDOR, 324T, INDUCTION AC MOTOR
| INVENTORY ID | 10189900000 |
| TITLE | 25 HP, 1175 RPM, 230/460V, BALDOR, 324T, INDUCTION AC MOTOR |
| HORSEPOWER | 25 HP |
| SPEED NAMEPLATE | 1175 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | BALDOR |
| FRAME | 324T |
| ENCLOSURE | TEFC |
| DESIGN | B |
| CODE | H |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 62/31 |
| SERIAL NUMBER OR ID NUMBER | 0600C |
| MODEL NUMBER OR STYLE NUMBER | CAT# M4111T |
| WEIGHT | 432 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 50 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 8 |
| DRIVE SHAFT DIAMETER | 2 1/8 |
| DRIVE SHAFT LENGTH | 5 1/4 |
