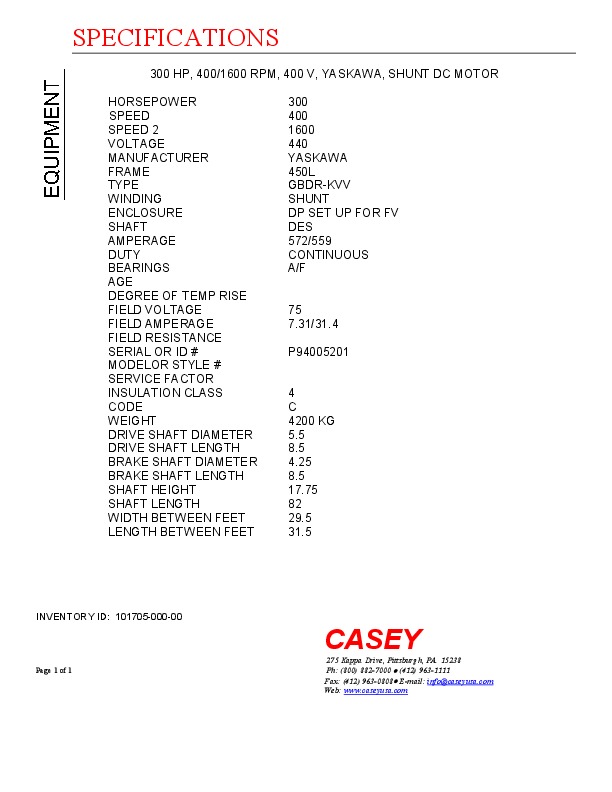

300 HP, 400/1600 RPM, 400 V, YASKAWA, 450L, SHUNT USED DC MOTOR
| INVENTORY ID | 10170500000 |
| TITLE | 300 HP, 400/1600 RPM, 400 V, YASKAWA, 450L, SHUNT USED DC MOTOR |
| HORSEPOWER | 300 HP |
| SPEED | 400 RPM |
| SPEED 2 | 1600 RPM |
| VOLTAGE | 440 VOLT |
| MANUFACTURER | YASKAWA |
| FRAME | 450L |
| TYPE | GBDR-KVV |
| WINDING | SHUNT |
| ENCLOSURE | DP SET UP FOR FV |
| SHAFT | DES |
| AMPERAGE | 572/559 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 75 |
| FIELD AMPERAGE | 7.31/31.4 |
| SERIAL NUMBER OR ID NUMBER | P94005201 |
| INSULATION CLASS | 4 |
| POWER SUPPLY CODE | C |
| WEIGHT | 4200 KG |
| DRIVE SHAFT DIMENSION | 5.5 |
| DRIVE SHAFT LENGTH | 8.5 |
| BRAKE SHAFT DIAMETER | 4.25 |
| BRAKE SHAFT LENGTH | 8.5 |
| SHAFT HEIGHT | 17.75 |
| MOTOR LENGTH | 82 |
| WIDTH BETWEEN FEET | 29.5 |
| LENGTH BETWEEN FEET | 31.5 |
