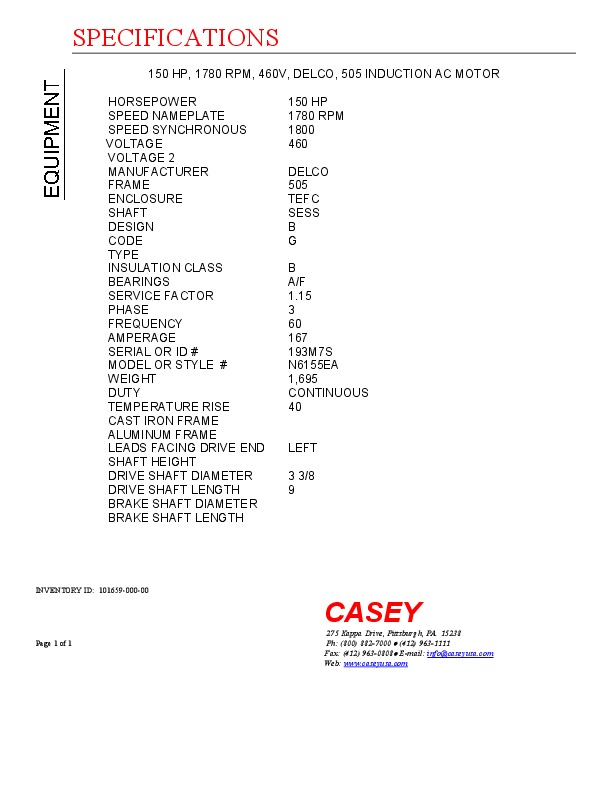

150 HP, 1780 RPM, 460V, DELCO, 505 INDUCTION AC MOTOR
| INVENTORY ID | 10165900000 |
| TITLE | 150 HP, 1780 RPM, 460V, DELCO, 505 INDUCTION AC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED NAMEPLATE | 1780 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | DELCO |
| FRAME | 505 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 167 |
| SERIAL NUMBER OR ID NUMBER | 193M7S |
| MODEL NUMBER OR STYLE NUMBER | N6155EA |
| WEIGHT | 1,695 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 9 |
