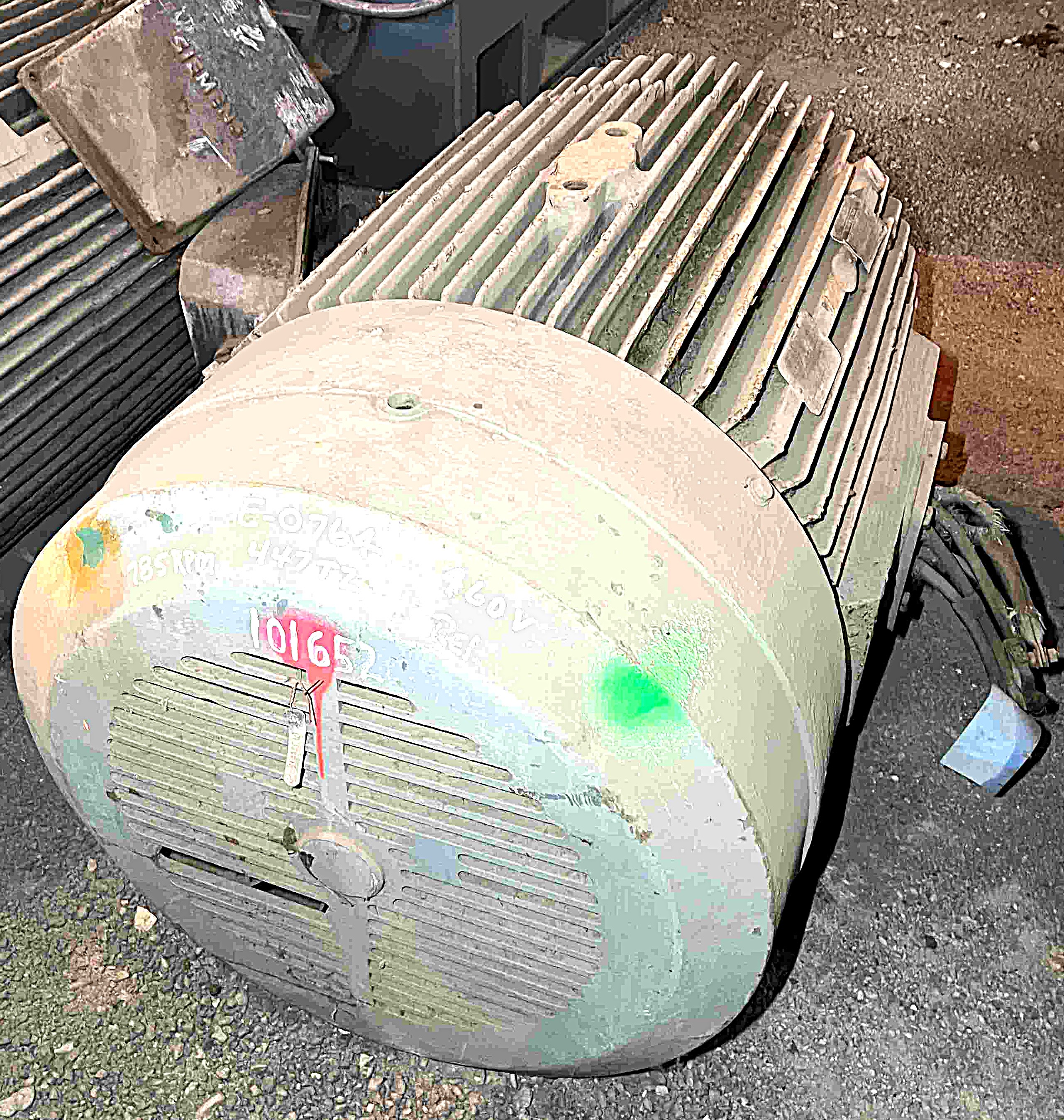

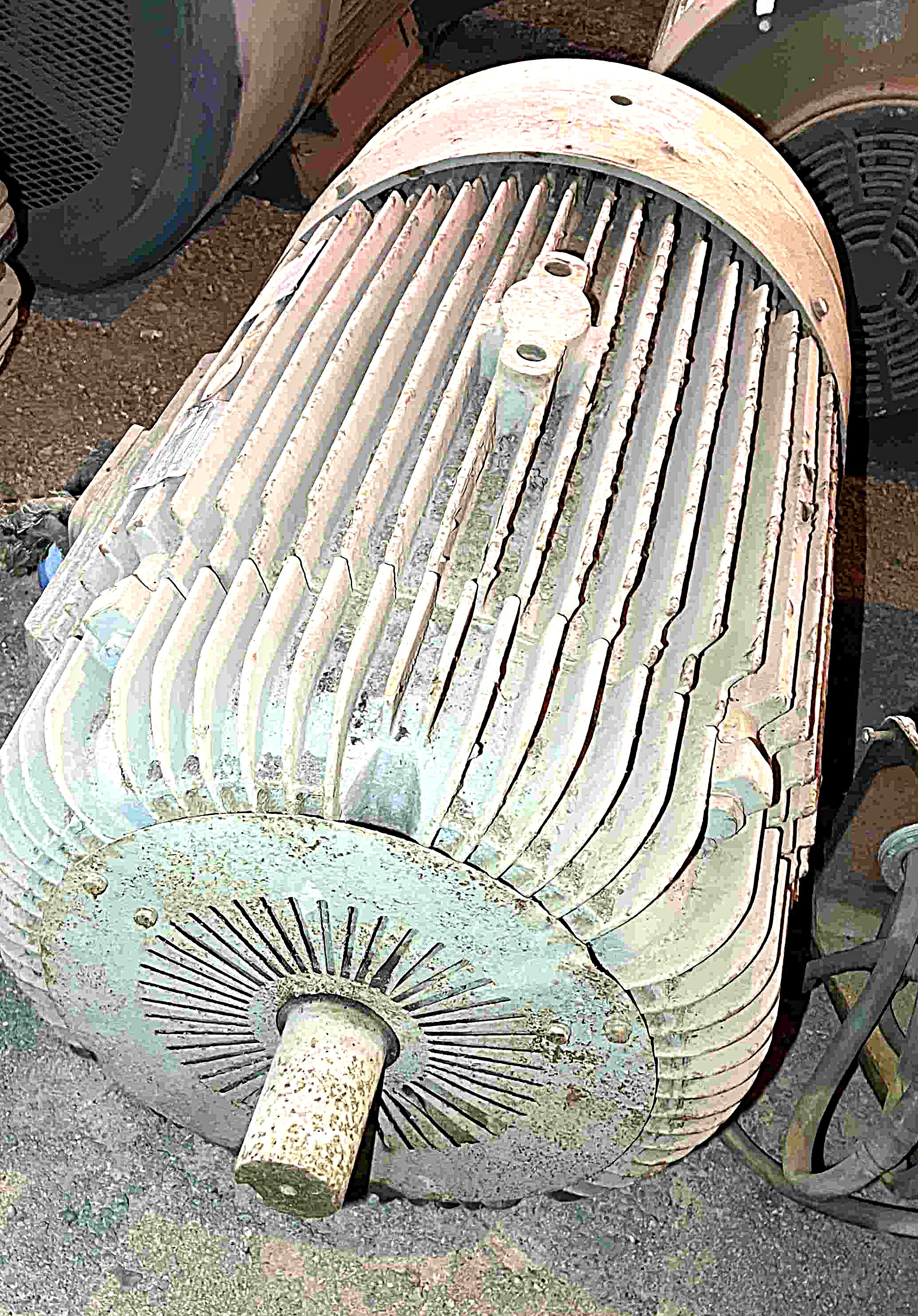

75 HP, 785 RPM, 460V, RELIANCE, 447TZ, INDUCTION AC MOTOR
 "10165200000 75 HP, 785 RPM, 460V, RELIANCE, 447TZ, INDUCTION AC MOTOR")
 "10165200000 75 HP, 785 RPM, 460V, RELIANCE, 447TZ, INDUCTION AC MOTOR")
| INVENTORY ID | 10165200000 |
| TITLE | 75 HP, 785 RPM, 460V, RELIANCE, 447TZ, INDUCTION AC MOTOR |
| HORSEPOWER | 75 HP |
| SPEED NAMEPLATE | 785 RPM |
| SPEED SYNCHRONOUS | 900 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 447TZ |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| CODE | J |
| TYPE | P |
| INSULATION CLASS | H |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 92 |
| MODEL NUMBER OR STYLE NUMBER | 6ML46774066XL |
| WEIGHT | 1,695 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
