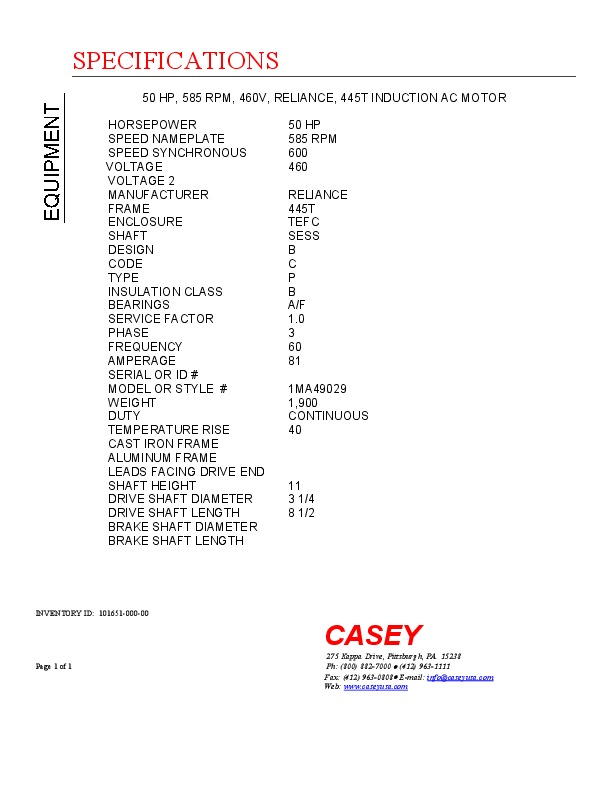

50 HP, 585 RPM, 460V, RELIANCE, 445T INDUCTION AC MOTOR
| INVENTORY ID | 10165100000 |
| TITLE | 50 HP, 585 RPM, 460V, RELIANCE, 445T INDUCTION AC MOTOR |
| HORSEPOWER | 50 HP |
| SPEED NAMEPLATE | 585 RPM |
| SPEED SYNCHRONOUS | 600 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | C |
| TYPE | P |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 81 |
| MODEL NUMBER OR STYLE NUMBER | 1MA49029 |
| WEIGHT | 1,900 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 1/4 |
| DRIVE SHAFT LENGTH | 8 1/2 |
