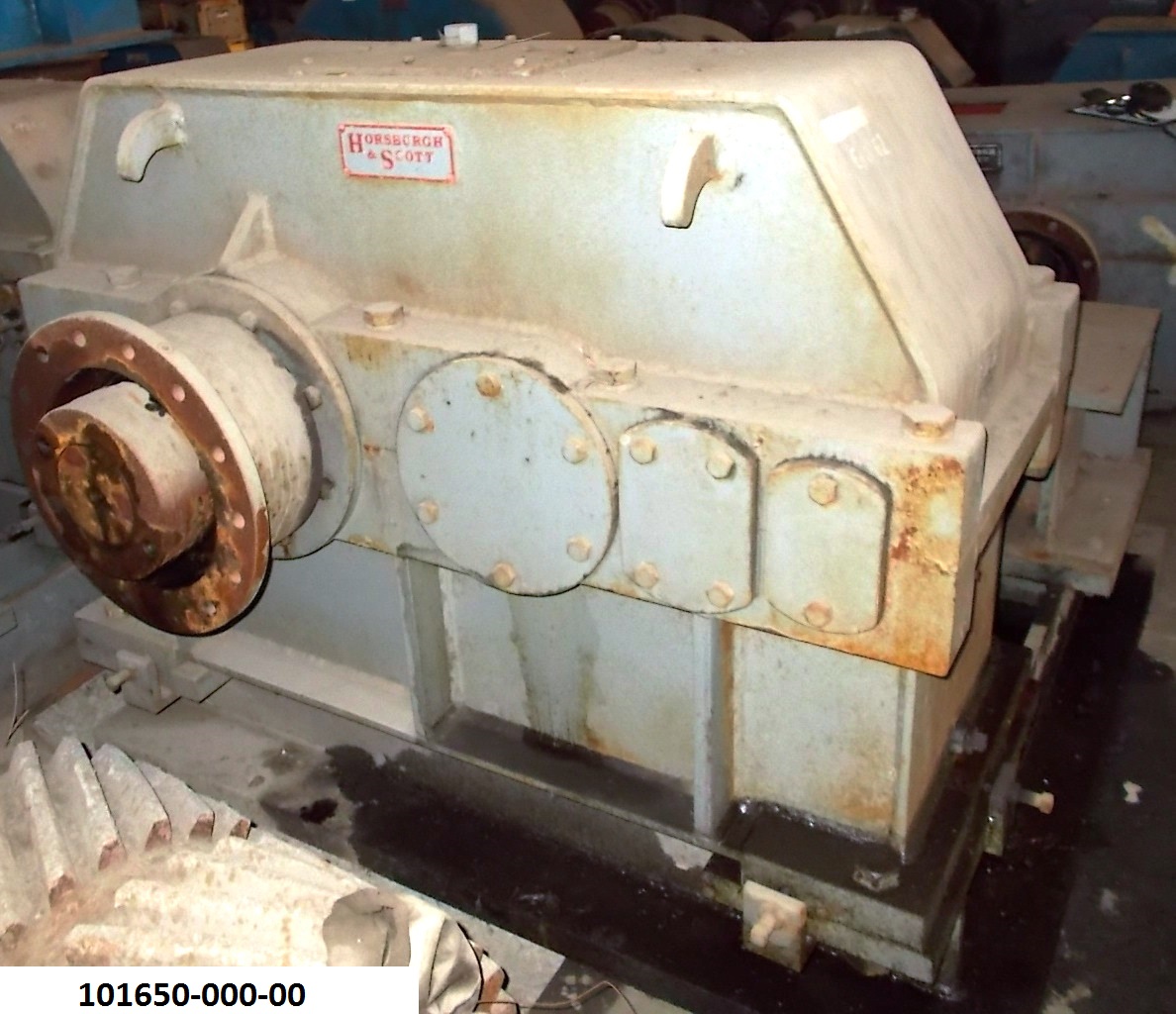

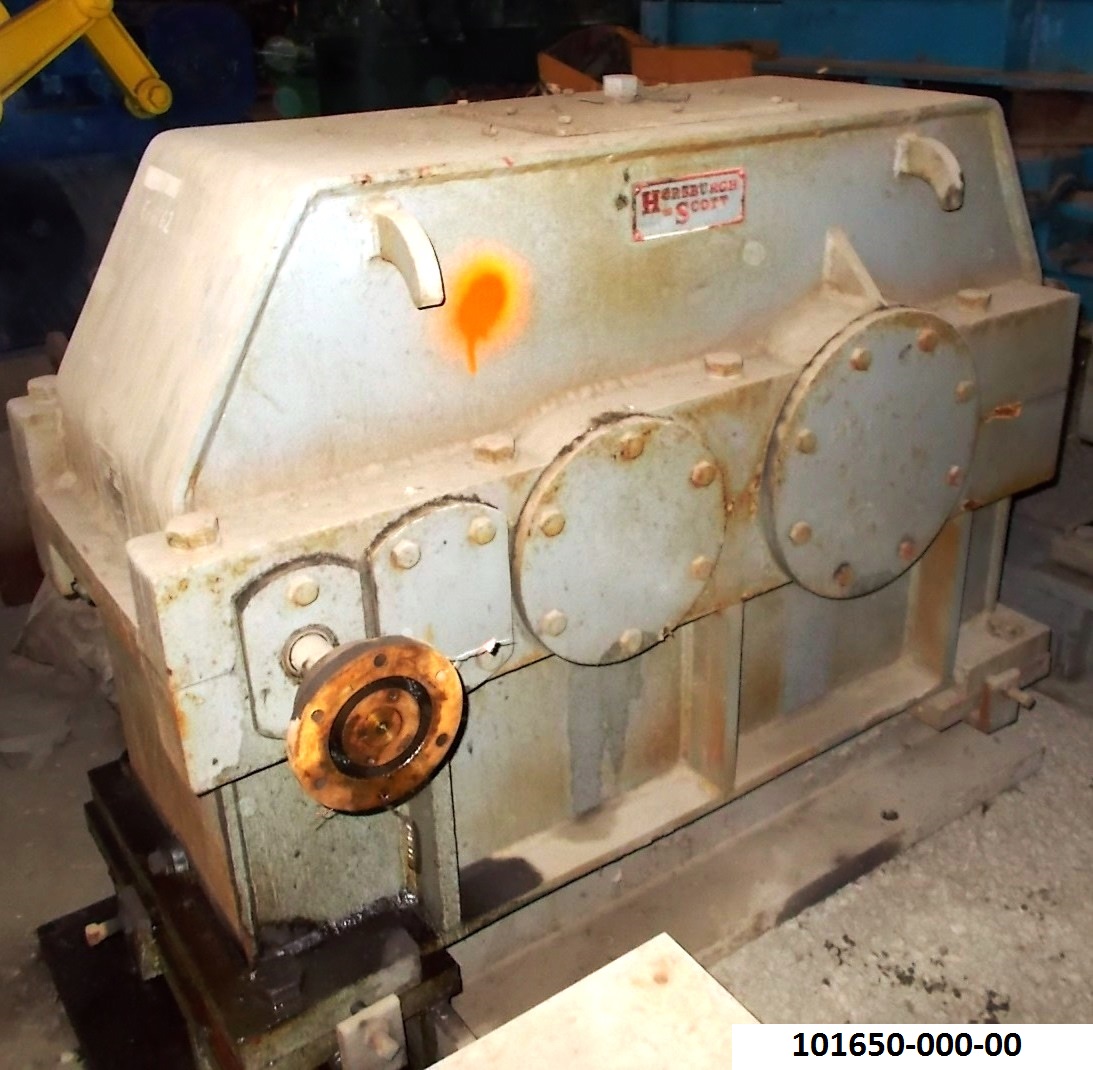

16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10165000000 16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10165000000 16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10165000000 16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10165000000 16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10165000000 |
| TITLE | 16.4 HP (12 KW), RPM INPUT 1200, 353 RATIO, RPM OUTPUT 3.4, HORSBURGH & SCOTT LT-3600 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 16.4 |
| RPM INPUT | 1200 |
| RATIO | 353:1 RATIO |
| RPM OUTPUT | 3.4 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |

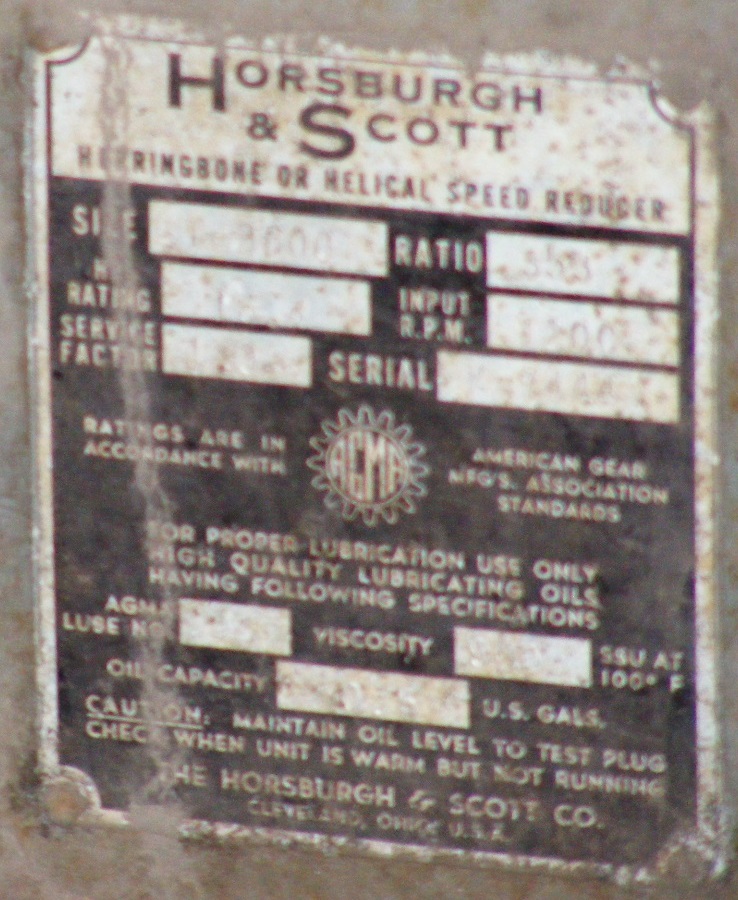

| MANUFACTURER OF EQUIPMENT | HORSBURGH AND SCOTT |
| MODEL NUMBER | LT-3600 |
| SERIAL NUMBER | K 7444 |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

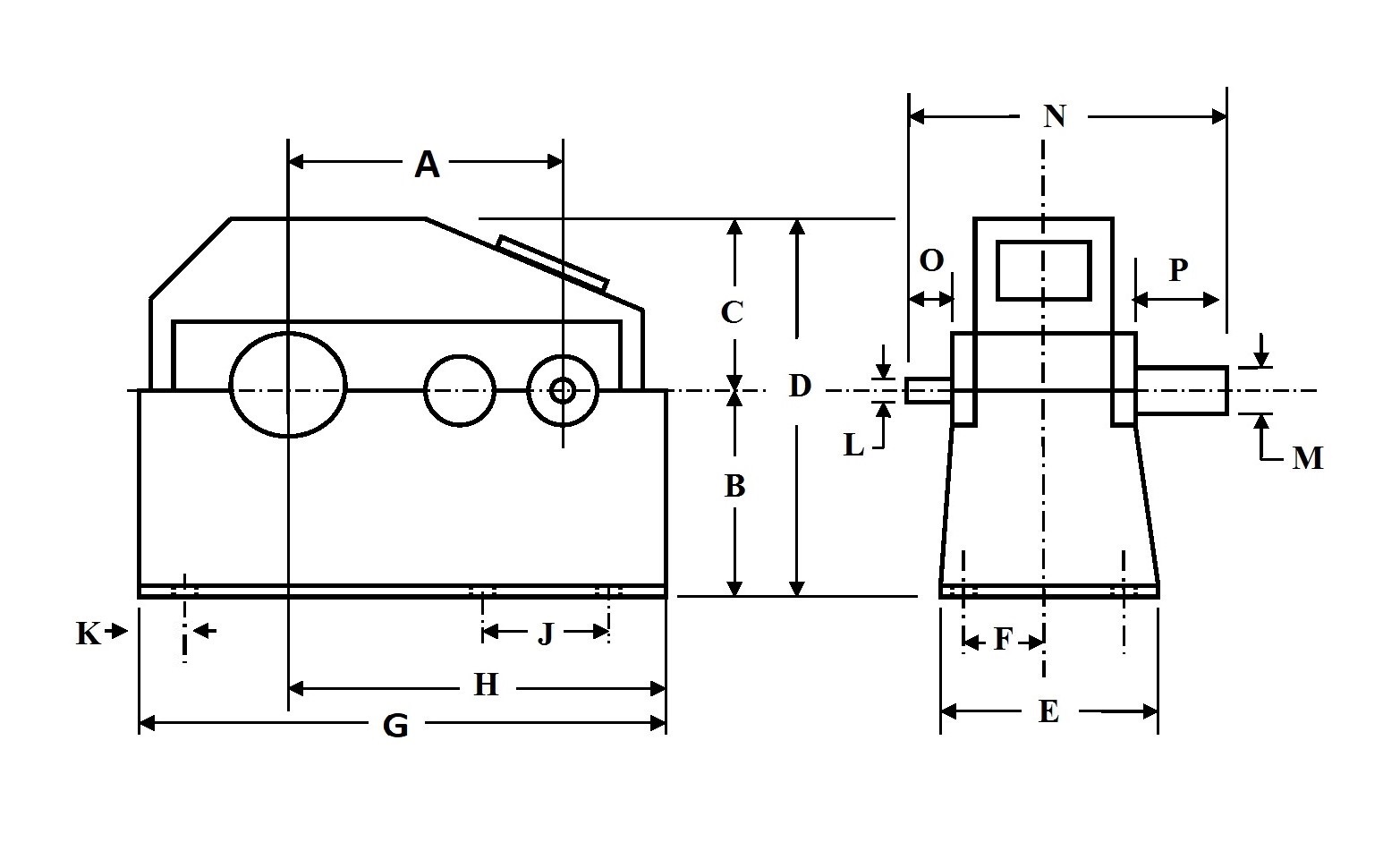

| DIMENSION A | 35.25 |
| DIMENSION B | 21 |
| DIMENSION C | 19 |
| DIMENSION D | 40 |
| DIMENSION E | 25 |
| DIMENSION F | 13 |
| DIMENSION G | 61 |
| DIMENSION H | 40 |
| DIMENSION J | 55.125 |
| DIMENSION K | 60.62 |
| DIMENSION L | 1.5 |
| DINEMSION M | 5.688 |
| DIMENSION N | 44 |
| DIMENSION O | 5.688 |
| DIMENSION P | 10 |
