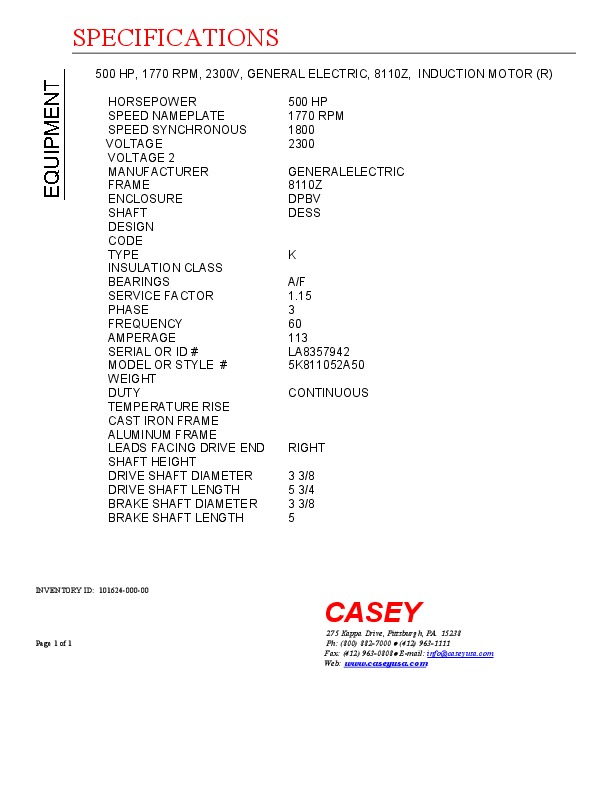

500 HP, 1770 RPM, 2300V, GENERAL ELECTRIC, 8110Z, INDUCTION AC MOTOR (R)
| INVENTORY ID | 10162400000 |
| TITLE | 500 HP, 1770 RPM, 2300V, GENERAL ELECTRIC, 8110Z, INDUCTION AC MOTOR (R) |
| HORSEPOWER | 500 HP |
| SPEED NAMEPLATE | 1770 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8110Z |
| ENCLOSURE | DPBV |
| SHAFT | DESS |
| TYPE | K |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 113 |
| SERIAL NUMBER OR ID NUMBER | LA8357942 |
| MODEL NUMBER OR STYLE NUMBER | 5K811052A50 |
| DUTY | CONTINUOUS |
| LEADS FACING DRIVE END | RIGHT |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 5 3/4 |
| BRAKE SHAFT DIAMETER | 3 3/8 |
| BRAKE SHAFT LENGTH | 5 |
