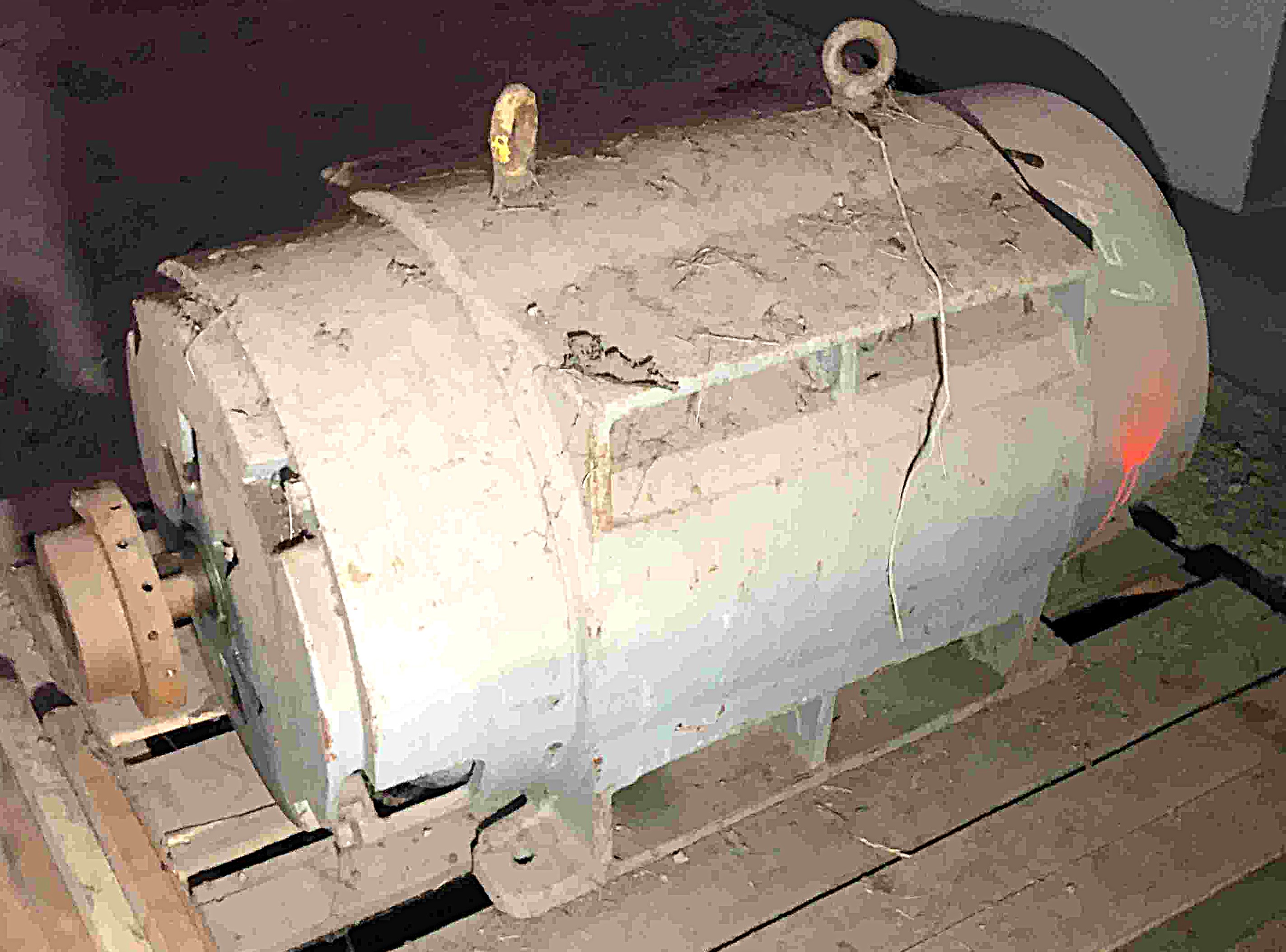

300 HP, 3560 RPM, 2300V, WESTINGHOUSE 449TS, INDUCTION AC MOTOR
 "10159300000 300 HP, 3560 RPM, 2300V, WESTINGHOUSE 449TS, INDUCTION AC MOTOR")
 "10159300000 300 HP, 3560 RPM, 2300V, WESTINGHOUSE 449TS, INDUCTION AC MOTOR")

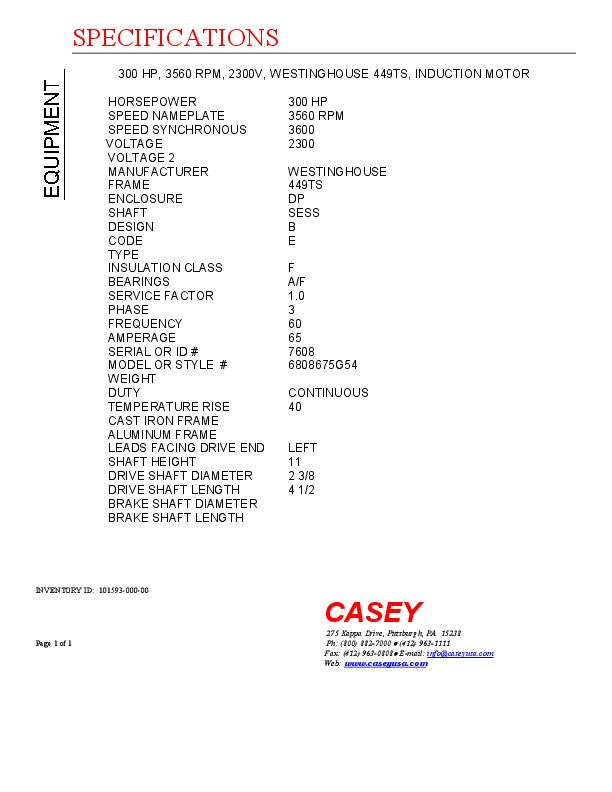

| INVENTORY ID | 10159300000 |
| TITLE | 300 HP, 3560 RPM, 2300V, WESTINGHOUSE 449TS, INDUCTION AC MOTOR |
| HORSEPOWER | 300 HP |
| SPEED NAMEPLATE | 3560 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 2300 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 449TS |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | E |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 65 |

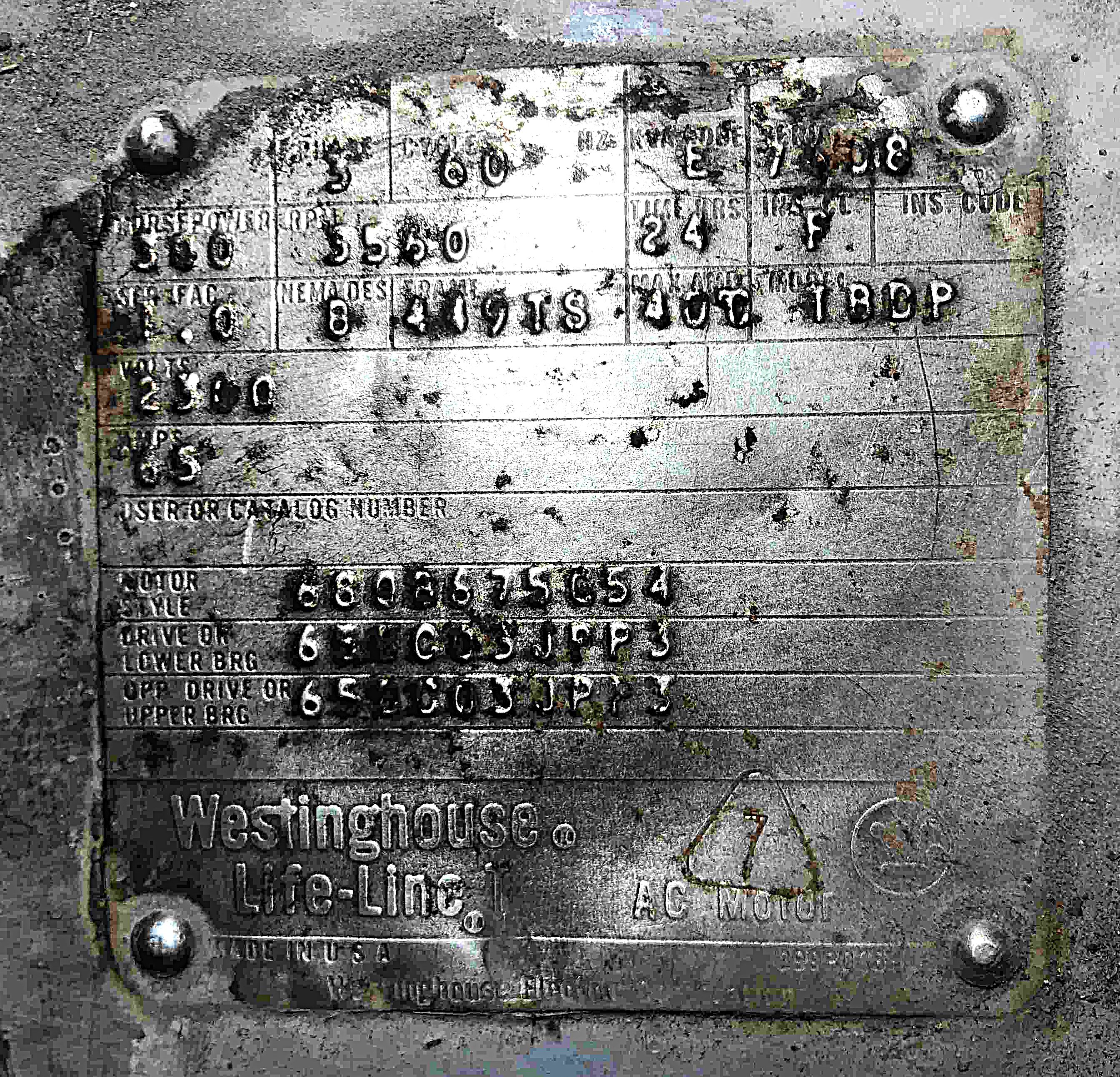

| SERIAL NUMBER OR ID NUMBER | 7608 |
| MODEL NUMBER OR STYLE NUMBER | 6808675G54 |
| WEIGHT | 1,650 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 4 1/2 |
