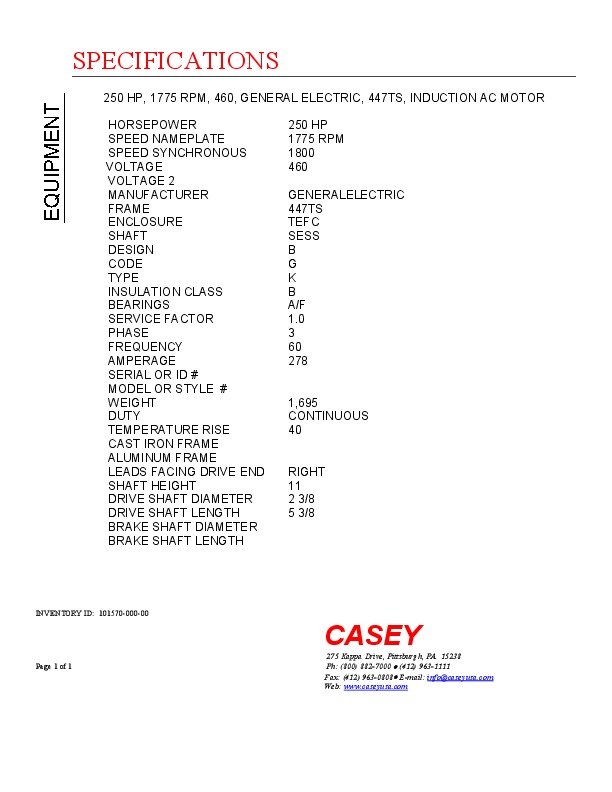

250 HP, 1775 RPM, 460, GENERAL ELECTRIC, 447TS, INDUCTION AC MOTOR
| INVENTORY ID | 10157000000 |
| TITLE | 250 HP, 1775 RPM, 460, GENERAL ELECTRIC, 447TS, INDUCTION AC MOTOR |
| HORSEPOWER | 250 HP |
| SPEED NAMEPLATE | 1775 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 447TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 278 |
| WEIGHT | 1,695 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 5 3/8 |
