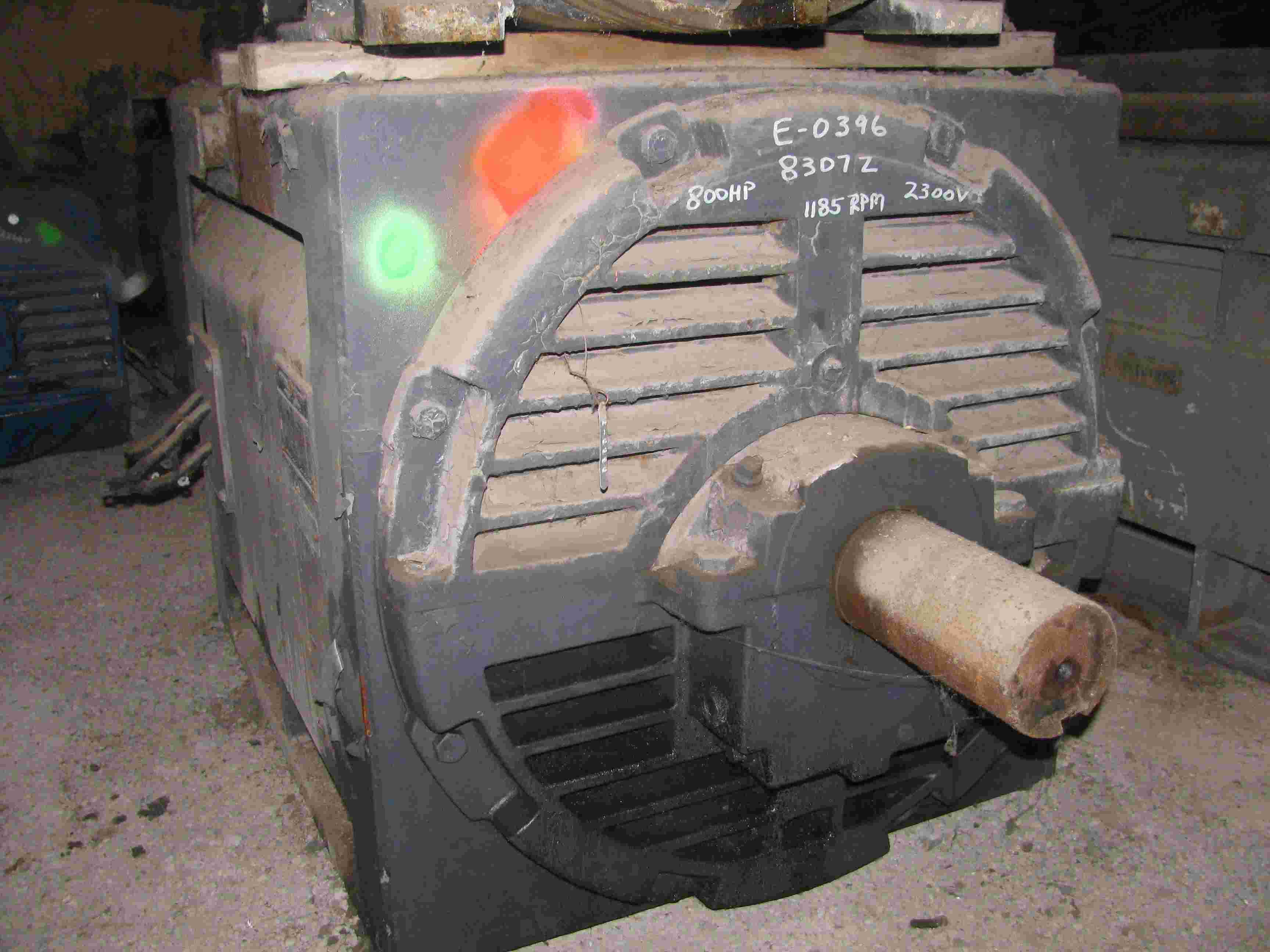

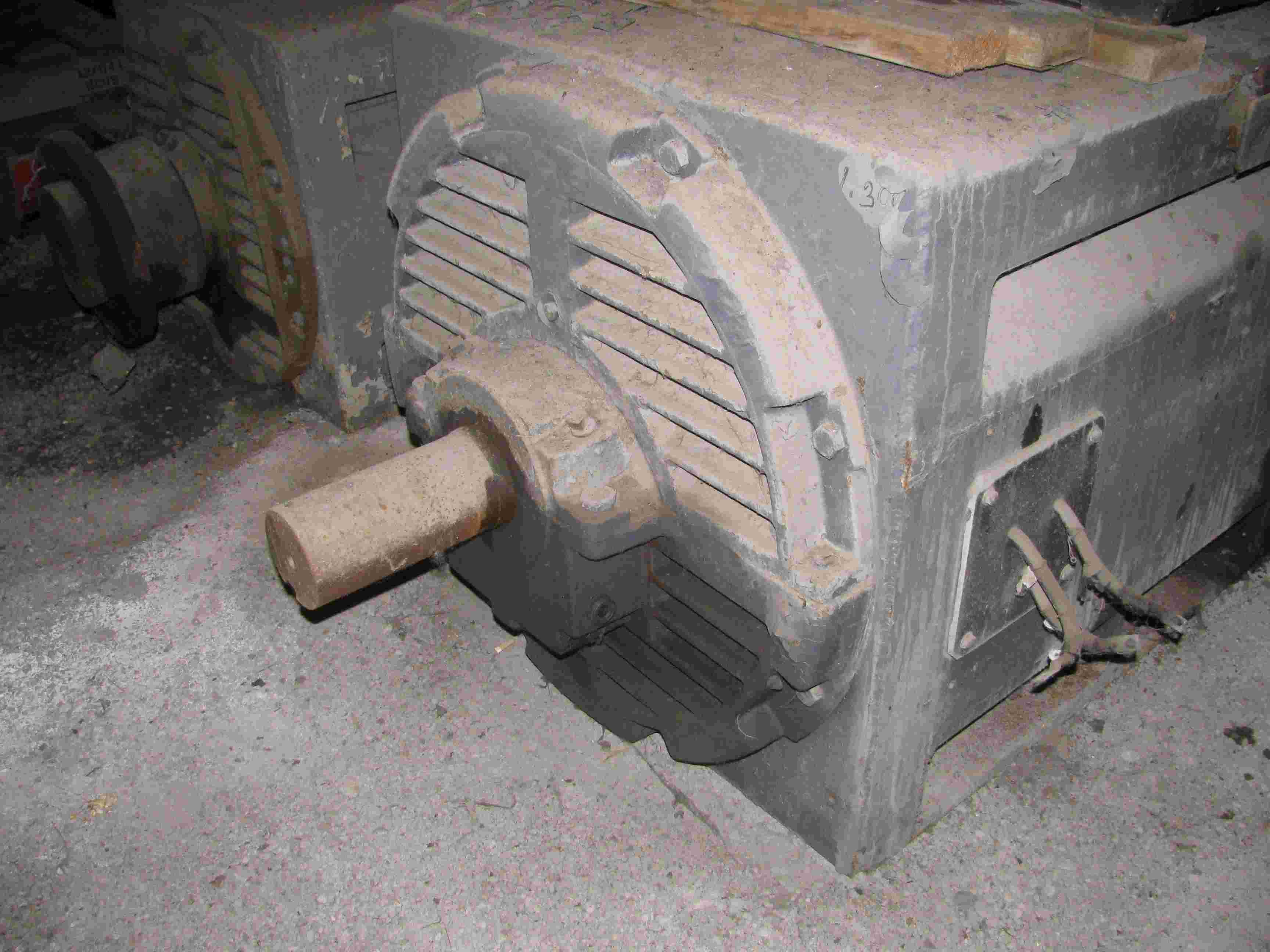

800 HP, 1185 RPM, 2300V, GENERAL ELECTRIC, 8307Z, INDUCTION AC MOTOR
 "10152900000 800 HP, 1185 RPM, 2300V, GENERAL ELECTRIC, 8307Z, INDUCTION AC MOTOR")
 "10152900000 800 HP, 1185 RPM, 2300V, GENERAL ELECTRIC, 8307Z, INDUCTION AC MOTOR")
 "10152900000 800 HP, 1185 RPM, 2300V, GENERAL ELECTRIC, 8307Z, INDUCTION AC MOTOR")

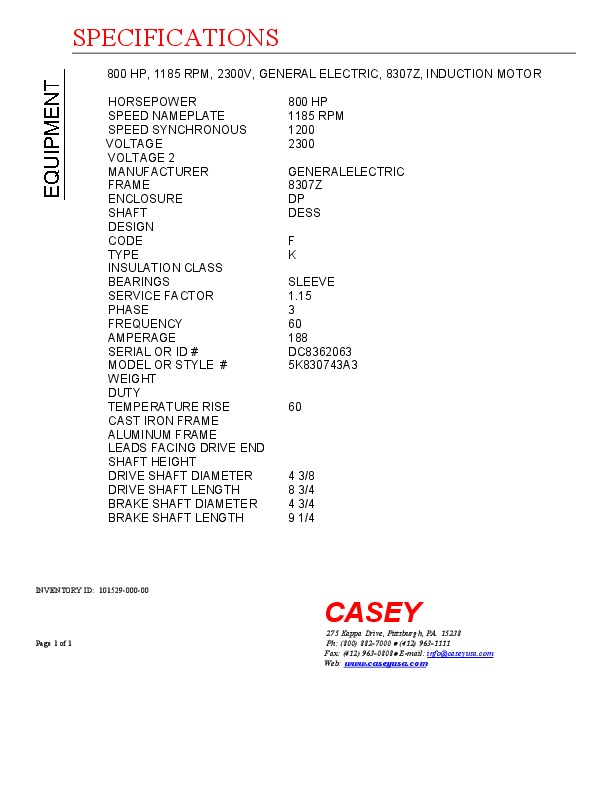

| INVENTORY ID | 10152900000 |
| TITLE | 800 HP, 1185 RPM, 2300V, GENERAL ELECTRIC, 8307Z, INDUCTION AC MOTOR |
| HORSEPOWER | 800 HP |
| SPEED NAMEPLATE | 1185 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8307Z |
| ENCLOSURE | DP |
| SHAFT | DESS |
| CODE | F |
| TYPE | K |
| BEARINGS | SLEEVE |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 188 |
| SERIAL NUMBER OR ID NUMBER | DC8362063 |
| MODEL NUMBER OR STYLE NUMBER | 5K830743A3 |
| WEIGHT | 7,250 LBS APPRX. |
| TEMPERATURE RISE | 60 |
| DRIVE SHAFT DIAMETER | 4 3/8 |
| DRIVE SHAFT LENGTH | 8 3/4 |
| BRAKE SHAFT DIAMETER | 4 3/4 |
| BRAKE SHAFT LENGTH | 9 1/4 |
