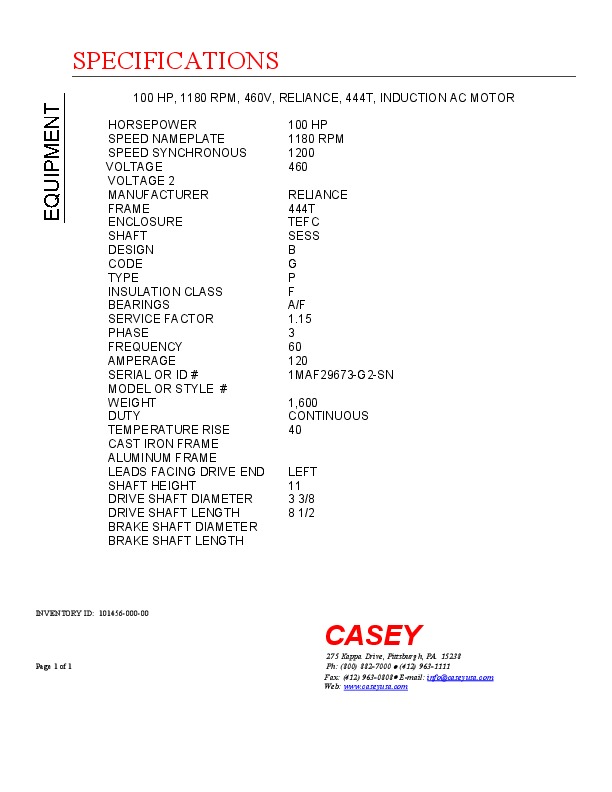

100 HP, 1180 RPM, 460V, RELIANCE, 444T, INDUCTION AC MOTOR - $4,500 ELECTRICALLY OK
| INVENTORY ID | 10145600000 |
| TITLE | 100 HP, 1180 RPM, 460V, RELIANCE, 444T, INDUCTION AC MOTOR - $4,500 ELECTRICALLY OK |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 1180 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 444T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 120 |
| SERIAL NUMBER OR ID NUMBER | 1MAF29673-G2-SN |
| WEIGHT | 1,600 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 1/2 |
