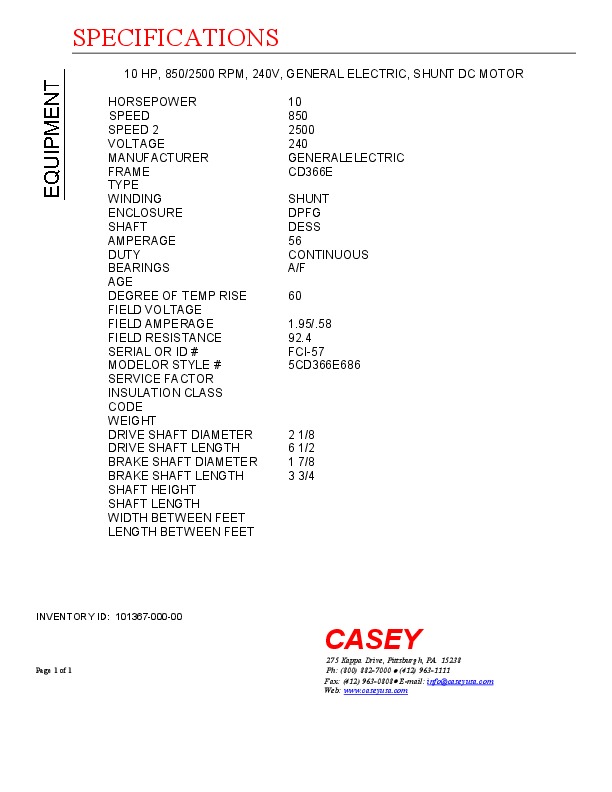

10 HP, 850/2500 RPM, 240V, GENERAL ELECTRIC, CD366E, SHUNT USED DC MOTOR
| INVENTORY ID | 10136700000 |
| TITLE | 10 HP, 850/2500 RPM, 240V, GENERAL ELECTRIC, CD366E, SHUNT USED DC MOTOR |
| HORSEPOWER | 10 HP |
| SPEED | 850 RPM |
| SPEED 2 | 2500 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 366E |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 56 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 1.95/.58 |
| FIELD RESISTANCE | 92.4 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | FCI-57 |
| MODEL NUMBER OR STYLE NUMBER | 5CD366E686 |
| DRIVE SHAFT DIMENSION | 2 1/8 |
| DRIVE SHAFT LENGTH | 6 1/2 |
| BRAKE SHAFT DIAMETER | 1 7/8 |
| BRAKE SHAFT LENGTH | 3 3/4 |
