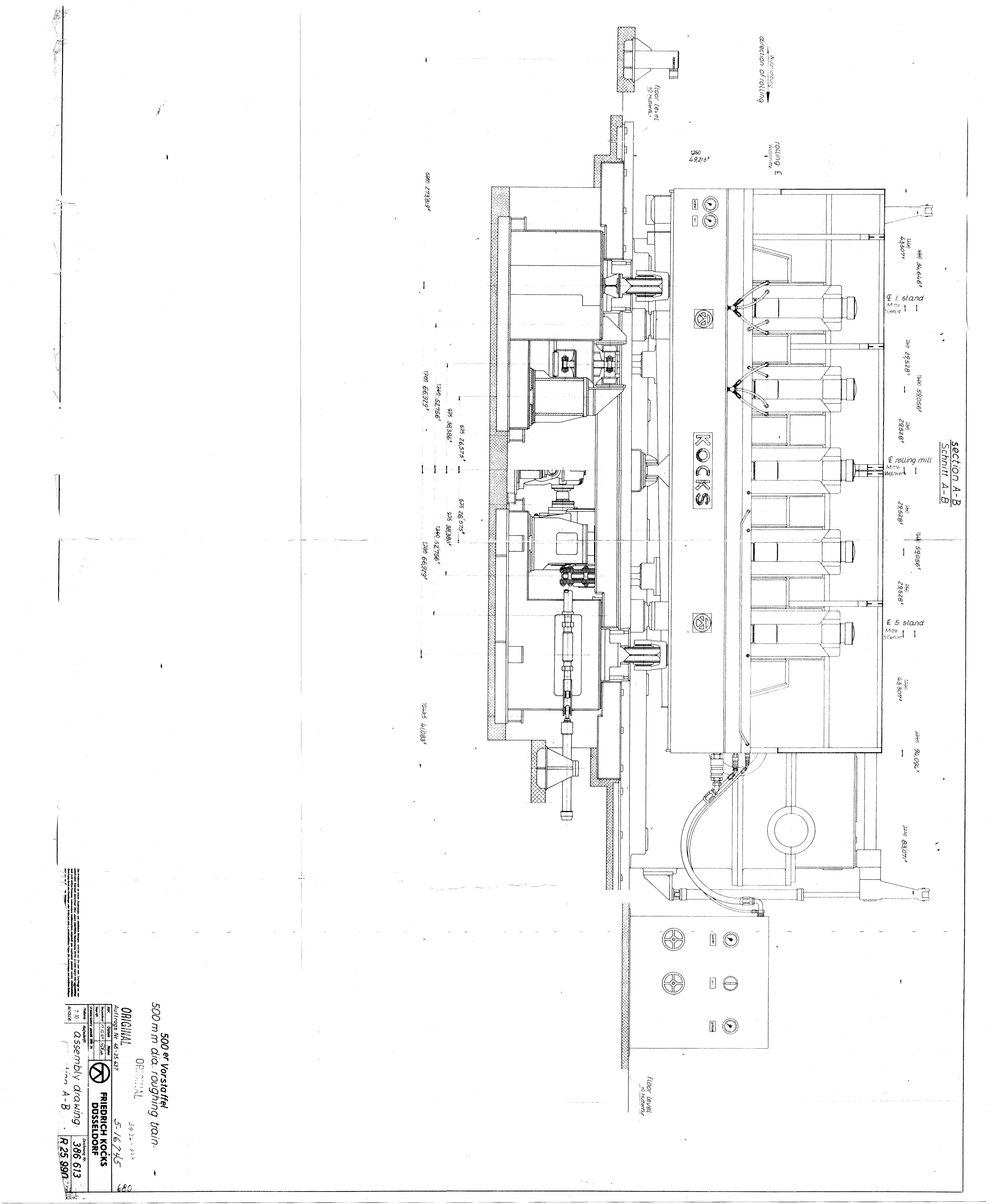

500 mm (19.68") KOCKS SIZING MILL

MANUFACTURER: KOCKS

AGE: 1967

QUANTITY: ONE COMPLETE CAR WITH 5 CASSETTES

GENERAL SPECIFICATIONS

CASSETTES: NINE (9) TOTAL (6 COMPLETE; 1 HOUSING ONLY; 2 PARTIAL ASSEMBLIES)

PRODUCT: ENTRY: 2 1/8" (54 mm)

EXIT: 1 1/4" (32 mm)

CARS: TWO, LESS WHEELS

ROLLS: THREE ROLLS TRIANGULAR POSITION PER CASSETTE 3 5/8" WIDTH X 19 11/16" DIA NOMINAL (92 mm X 500 mm)

MAIN GEARBOX: 5 OUTPUTS @ 29 1/4" CENTERS (742 mm)

PREVIOUS USE: ROD MILL ROUGHING CAR (MILL CAPACITY 275,000 TYP OPERATING AT 14,000 FPM)

FEATURES

SPARE CAR, LESS WHEELS

(1) SECTION OF CAR TRACKS WITH WHEEL TURNSTILES

ROLL CHANGING STAND

WATER, LUBE, GREASE DISTRIBUTION SYSTEM

NOTE 1: MAIN GEARBOX IS DISASSEMBLED

NOTE 2: THE ABOVE CAR AND GEARBOX WAS USED TO ROLL CARBON STEEL. IF SLOWER SPEED IS REQUIRED

IN ORDER TO ROLL TITANIUM OR NON-FERROUS MATERIALS, A LARGER REDUCTION GEARBOX IS AVAILABLE SEPARATELY

INVENTORY #: 100351-001-00

INVENTORY ID	10035100100
TITLE	500 mm (19.68") KOCKS SIZING MILL
WORK ROLL DIA.	500 mm (19.68")
WORK ROLL DIAMETER	19.68" (500 mm)
ROLL CONFIGURATION (H/V)	CAR WITH CASSETTE
NUMBER OF STANDS	1
MANUFACTURER OF EQUIPMENT	KOCKS
YEAR OF MANUFACTURE	1967
INPUT DIAMETER	2" (50 mm)
OUTPUT DIAMETER	1.25" (31.75 mm)
ROLL CONFIGURATION	3 ROLLS TRIANGULAR POSITION PER CASSETTE
