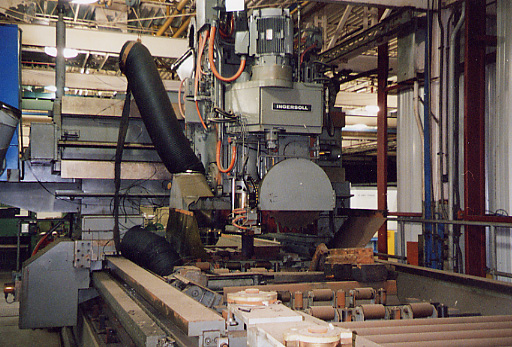

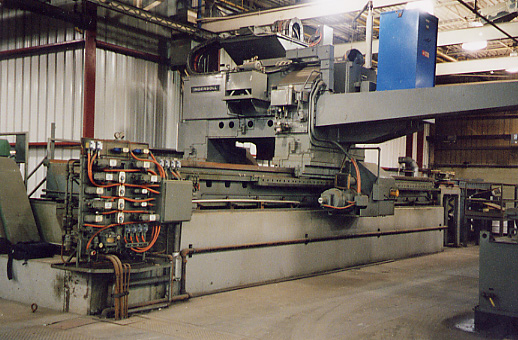

52 X 216 INGERSOLL MILLER PLANER, SIDE AND END CUT SAW 75 HP CHIP CONVEYOR SLOTTING CUTTER

MANUFACTURER: INGERSOLL MILLING MACHINE COMPANY

AGE: 1983

TYPE: MILLER PLANER MACHINE WITH END CROP SAW

MATERIAL: BERYLLIUM COPPER (10 AND 25 ALLOY)

CAPACITY: 2" TO 8" THICK (50 MM to 200 MM); 26" TO 52" WIDE (660 MM to 1320 MM);

18' LONG SLABS (5.5M); 3,000 TO 10,000 LBS

HARDNESS: 80 RB TO 30 RC

FEED SYSTEM: X-AXIS 10/300" PER MINUTE (244" TRAVEL)

Y-AXIS 5/20" PER MINUTE (68.5" TRAVEL)

Z-AXIS 100" PER MINUTE (14" TRAVEL)

CAPACITY: 20 MILLION POUNDS A YEAR OR 15" OF MATERIAL REMOVAL OVER A 36" WIDE X 18' LONG SLAB

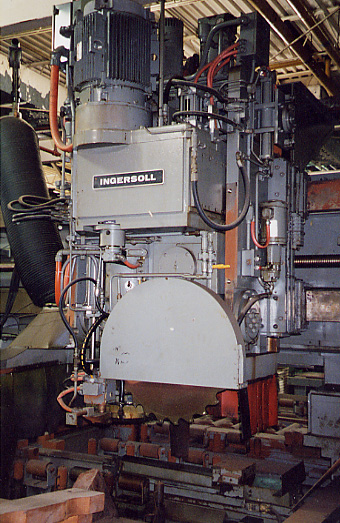

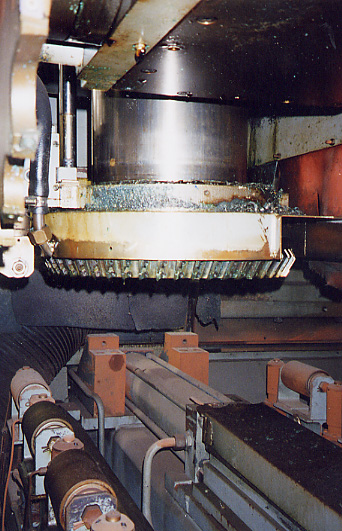

CUTTING TOOLS USED: MILLING: 18" DIA. WITH 32 inserts (460 MM); CROPPING: 30" DIA. (760 MM);

SPINDLE DRIVE: 75 HP AC MOTOR; 365 TDS FRAME; 1800 RPM; 460 VOLTS AC, 3 PHASE, 60 HERTZ

FEATURES: ELECTRICAL CONTROLS; COOLANT SYSTEM; HYDRAULIC SYSTEM; CHIP CONVEYOR

INVENTORY ID: 100339-000-00 (CM 0037)

INVENTORY ID	10033900000
TITLE	52 X 216 INGERSOLL MILLER PLANER, SIDE AND END CUT SAW 75 HP CHIP CONVEYOR SLOTTING CUTTER
YEAR OF MANUFACTURE	1983
NUMBER (SIZE)	52
MANUFACTURER OF EQUIPMENT	INGERSOLL MILLING MACHINE CO
SLAB THICKNESS MIN	2
SLAB THICKNESS MAX	8
SLAB WIDTH MIN	26
SLAB WIDTH MAX	52
SLAB LENGTH MAX	18
SLAB WEIGHT MAX	10,000
MATERIAL (STEEL/COPPER/ALUMINUM)	BERYLLIUM COPPER
SURFACE FINISH RMS	125
SURFACE FINISH TOLERANCE	0.015
X-AXIS SPEED	10/300 IPM
Y-AXIS SPEED	5/20 I'M
Z-AXIS SPEED	100 IPM
TYPE (VERITCAL/HORIZONTAL)	HORIZONTAL
SPINDLE DRIVE MOTOR HP	75
SPINDLE MOTOR RPM	1800
SPINDLE MOTOR VOLTAGE	460
SPINDLE VOLTS (AC OR DC)	AC
SPINDLE MOTOR FREQUENCY	60
SPINDLE MOTOR AVAILABLE	AVAILABLE
