330 HP (250 KW), RPM INPUT 400/1100, 4.1176 RATIO, RPM OUTPUT 97/267, JANNEL KESTERMAN, CSA 315 RA GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10032700100 330 HP (250 KW), RPM INPUT 400/1100, 4.1176 RATIO, RPM OUTPUT 97/267, JANNEL KESTERMAN, CSA 315 RA GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10032700100 330 HP (250 KW), RPM INPUT 400/1100, 4.1176 RATIO, RPM OUTPUT 97/267, JANNEL KESTERMAN, CSA 315 RA GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10032700100 330 HP (250 KW), RPM INPUT 400/1100, 4.1176 RATIO, RPM OUTPUT 97/267, JANNEL KESTERMAN, CSA 315 RA GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10032700100 |
| TITLE | 330 HP (250 KW), RPM INPUT 400/1100, 4.1176 RATIO, RPM OUTPUT 97/267, JANNEL KESTERMAN, CSA 315 RA GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 330 |
| RPM INPUT | 400/1100 |
| RATIO | 4.1176:1 RATIO |
| RPM OUTPUT | 97/267 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | JANNEL KESTERMAN |
| MODEL NUMBER | CSA 315 RA |
| REDUCTION | SINGLE |
| SVC FACTOR (1.0, 1.5 ETC) | 2.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

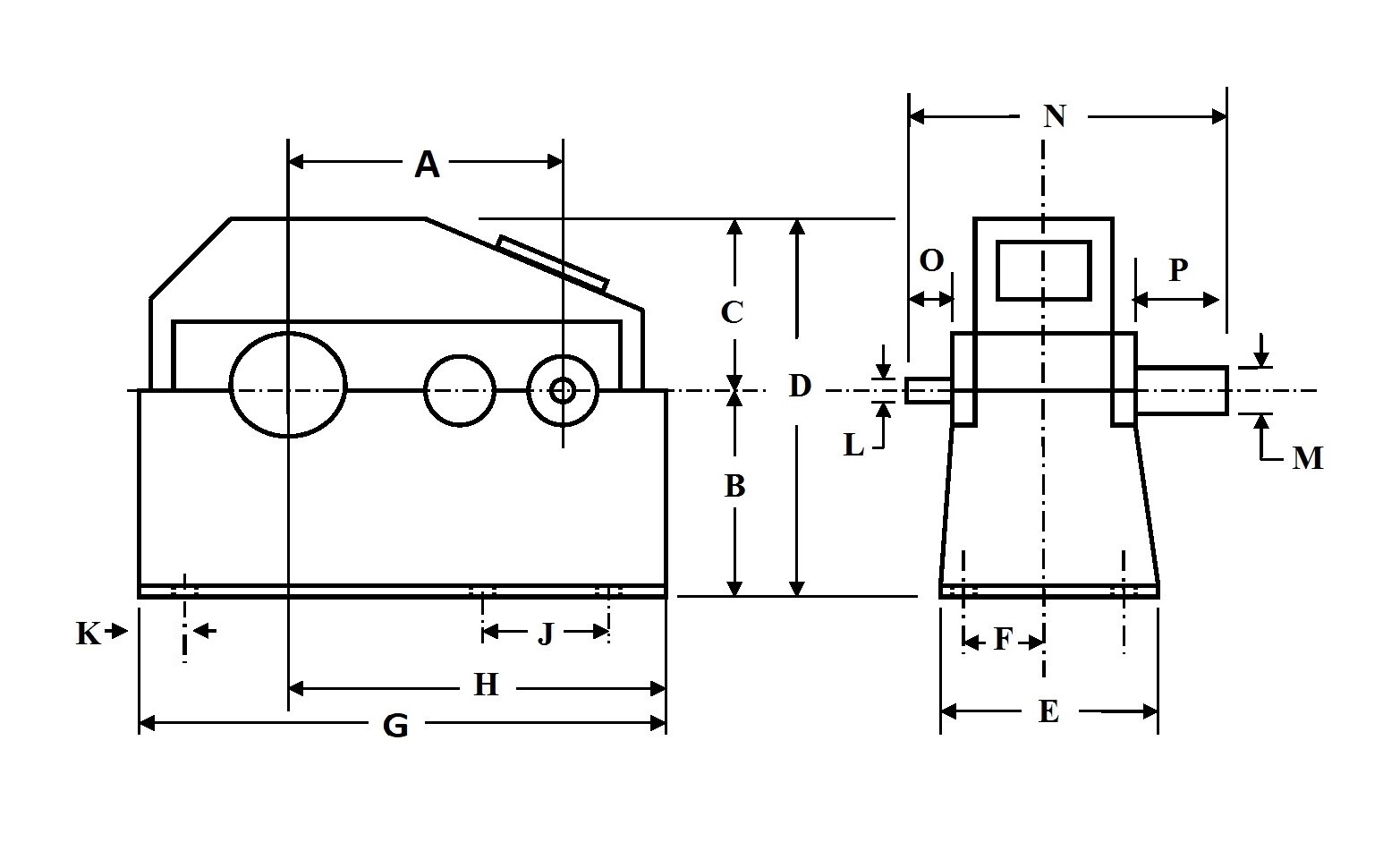

| DIMENSION A | 12.5 |
| DIMENSION B | 15.75 |
| DIMENSION C | 12.75 |
| DIMENSION D | 28.5 |
| DIMENSION E | 15.75 |
| DIMENSION F | 6.5 |
| DIMENSION G | 38.75 |
| DIMENSION H | 23 |
| DIMENSION J | 14 |
| DIMENSION K | 2.125 |
| DIMENSION L | 5 |
| DINEMSION M | 5 |
| DIMENSION N | 35.25 |
| DIMENSION O | 8 |
| DIMENSION P | 10.75 |
