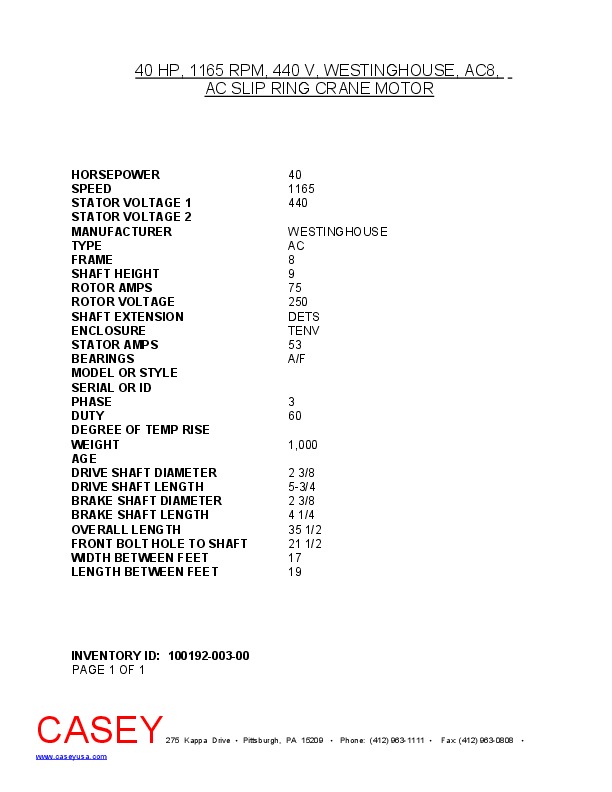

40 HP, 1165 RPM, 440 V, WESTINGHOUSE, AC8, AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10019200300 |
| TITLE | 40 HP, 1165 RPM, 440 V, WESTINGHOUSE, AC8, AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 40 |
| SPEED | 1165 |
| STATOR VOLTAGE 1 | 440 |
| MANUFACTURER | WESTINGHOUSE |
| TYPE | AC |
| FRAME | 8 |
| SHAFT HEIGHT | 9 |
| ROTOR AMPS | 75 |
| ROTOR VOLTS | 250 |
| SHAFT EXTENSION | DETS |
| ENCLOSURE | TENV |
| STATOR AMPS | 53 |
| BEARINGS | A/F |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| WEIGHT | 1,000 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 5-3/4 |
| BRAKE SHAFT DIAMETER | 2 3/8 |
| BRAKE SHAFT LENGTH | 4 1/4 |
| OVERALL LENGTH | 35 1/2 |
| FRONT BOLT HOLE TO SHAFT | 21 1/2 |
| WIDTH BETWEEN FEET | 17 |
| LENGTH BETWEEN FEET | 19 |
